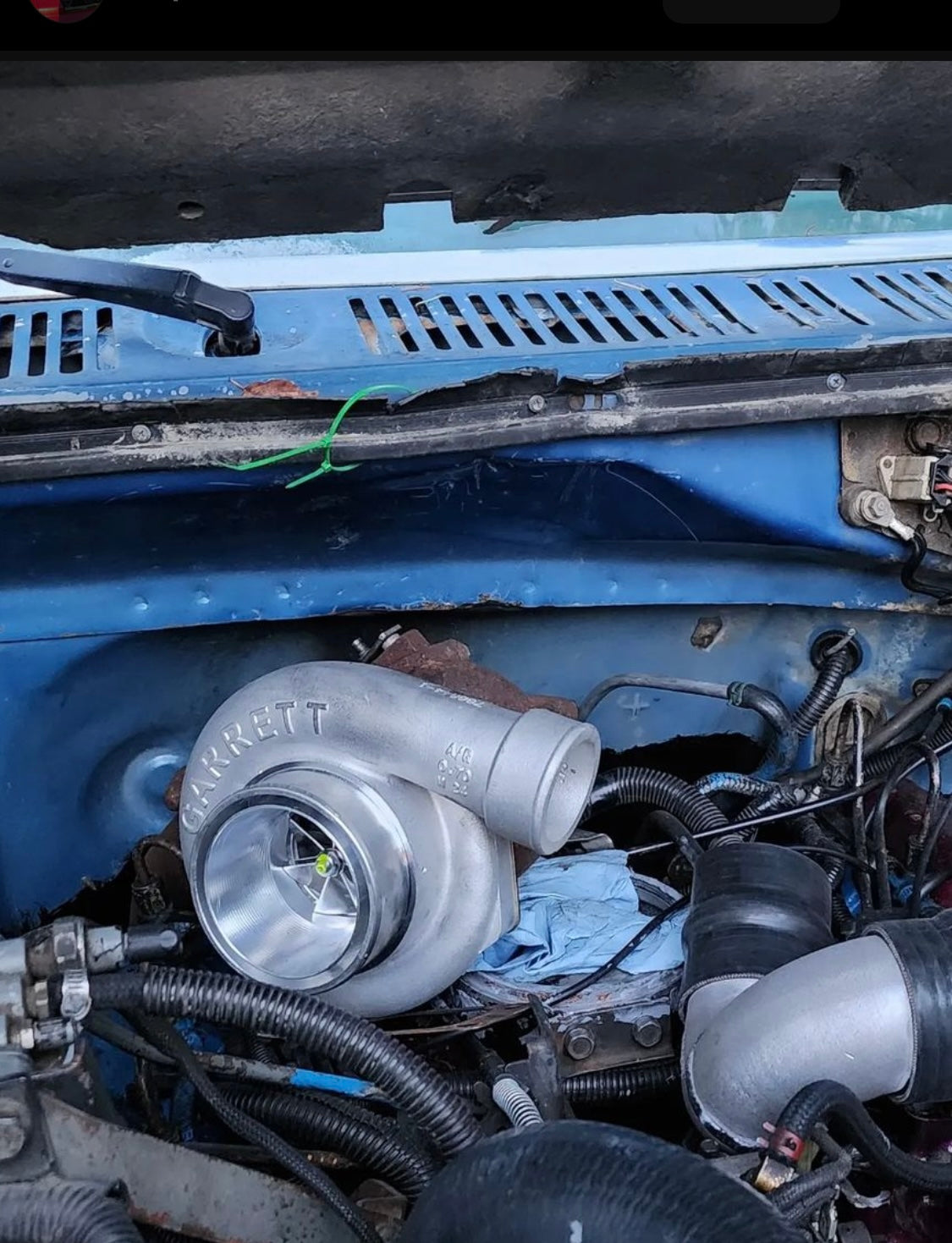

Stage 2 GTX3582 T04S Drop In Upgrade for Factory IDI/093 Turbos
The GTX3582R T04S upgrade for factory IDIT and 093 turbos is the middle ground in performance between the Stage 1 61mm factory upgrades and Stage 3 T04Z upgrades, with more than enough airflow for 130+ cc of fueling, without requiring head studs like the T04Z turbo upgrade.
This upgrade takes the stock compressor wheel size of 58/70mm to a 61/85/82mm modern forged billet wheel that is not only stronger than the stock cast wheel, but lighter as well, all CNC machined in the T04S cover.
This compressor housing upgrade takes the inlet from the stock 2 3/4" inlet to a 4" ported anti surge inlet, and a 2.5" outlet with a cast in bead roll for a tight clamp on intercooler couplers. If you don't want to immediately add an intercooler, the T04S cover can be used non intercooled with the CDD intake hat.
For those who want that screaming turbo noise, we have a limited quantity of T51R modded T04S compressor housing with a sleeved velocity stack inlet for maximum turbo noises.
This turbo has no core charge, and is available as a supercore (complete turbo with no turbine housing) to drop into the original turbine housing, so no down time with your truck, and after you install your new turbo we will buy back your stock turbo for core parts for our other turbo rebuilds! Likewise, you can buy this turbo as a complete unit with a new ford housing.
Ceramic coating is available as an upgrade for any level of turbo rebuild, our high temp ceramic coating is available in colors and mixtures of gold, silver, black and green to restore the look of your turbo, insulate the piping to improve turbo spool time, all while keeping more heat out of your cab and rust out of your exhaust. The default color for ceramic coating is silver, if you wish to use any of the other available colors, please leave a note at checkout, or through the Contact Us page. If opted not to use a ceramic coating, the turbine will be coated with a high temp primer to prevent corrosion and give the turbo a like new look.
*T04S cover does not fit the 093 or IDIT intake boxes. Please check out our cold air intake kit, and select the T04S cover option for a bolt in upgrade.
*Wastegate is still retained, however in high boost applications we recommend our wastegate delete flanges.
